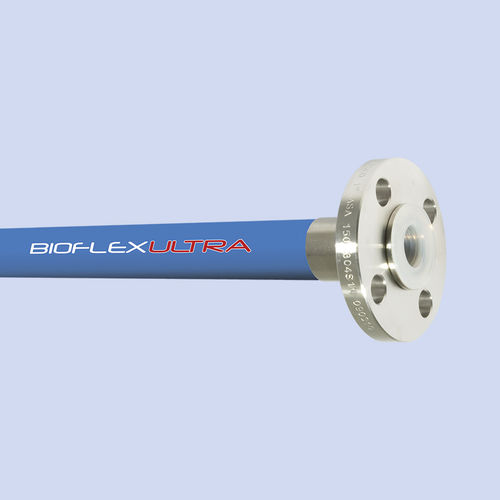

Pipe flange

steelPTFE-lined

Flange Specifications ANSI B16.5 (also ASME B16.5) Class 150# and 300# *DIN PN10, PN16 and PN40 JIS 10K Other Pressure Ratings and Flange Specifications are also available. *DIN PN10, PN16 and PN40 Flanges all have the same dimensions, and so are fully interchangeable Maximum Pressure Ratings for Flange Fittings ANSI 150# = 16 Bar (230 psi), ANSI 300# = 41.4 Bar (600 psi) DIN PN10 = 10 Bar (145 psi), DIN PN16 = 16 Bar (230 psi) DIN PN40 = 40 Bar (580 psi) End Fitting Materials Flanges in Grade 304 SS Flange Retainers in Grade 316L SS Ferrules, most in Grade 304 SS, some sizes in Grade 316 SS Alternative Options for Flange Component only Zinc Plated Carbon Steel 90° Elbow Flange Fittings 90˚ Elbow Integral PTFE lined Flange Fittings are available for sizes 1”, 11/2” and 2”
