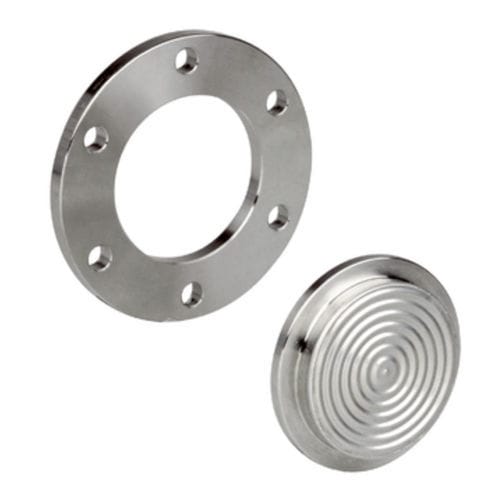

Diaphragm seal with flange connection MD 40
for pressure gaugesextendedprocess

Diaphragm seal with flange connection - MD 40 - AFRISO-EURO-INDEX - for pressure gauges / extended / process
Diaphragm seal with flange connection - MD 40 - AFRISO-EURO-INDEX - for pressure gauges / extended / process
Diaphragm seal with flange connection - MD 40 - AFRISO-EURO-INDEX - for pressure gauges / extended / process - image - 2
Diaphragm seal with flange connection - MD 40 - AFRISO-EURO-INDEX - for pressure gauges / extended / process - image - 3
Diaphragm seal with flange connection - MD 40 - AFRISO-EURO-INDEX - for pressure gauges / extended / process - image - 4
Diaphragm seal with flange connection - MD 40 - AFRISO-EURO-INDEX - for pressure gauges / extended / process - image - 5
Diaphragm seal with flange connection - MD 40 - AFRISO-EURO-INDEX - for pressure gauges / extended / process - image - 6
Add to favorites
Compare this product

Go to the AFRISO-EURO-INDEX website for more information

Characteristics

Installation system
with flange connection
Other characteristics
for pressure gauges, extended
Domain
process
Pressure

40 bar
(580.15 psi)

Description

Special flange connection for the pulp and paper industries Compact design Can be welded directly to the pressure gauge Various tubus lengths available Application For mounting to Bourdon tube pressure gauges, pressure transducers or pressure switches. For corrosive, highly viscous, polluted or hardening media. Typical application areas: Paper industry Pulp industry Lacquer industry Technical data Pressure transmission liquid Paraffin oil (FM 09), FDA-listed Pressure range See overview of versions Scope of delivery Diaphragm seal Screws M6 x 20 (galvanised steel) Seal (NBR) 59 x 48 x 2 mm Options Process connection/tubus Extended tubus 18 mm (also suitable for O ring seal) Special materials Silicone-free version Diaphragm Special materials Instrument connection Adapter for instrument connection G¼B/G½B Cooling element (> 100 °C) Capillary tube Other Other filling liquids
