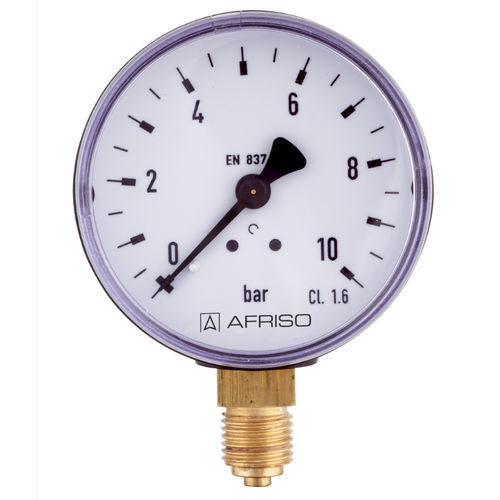

Dial pressure gauge D1

plasticBourdon tubecorrosion-resistant

For pneumatic and heating system applications Design as per EN 837-1 Accuracy class 1.6 Corrosion-resistant, highly impact-resistant plastic housing Many customised versions available Application For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. ! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2"! Technical data Ranges (EN 837-1/5) See ordering table Application area Static load: ¾ x full scale value Dynamic load: ⅔ x full scale value Short-term: Full scale value Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C: at rising temperature approx. ± 0.4 %/10 K falling temperature approx. ± 0.4 %/10 K of full scale value Degree of protection IP 32 (EN 60529) Standard design Connection Brass, bottom or centre back Measuring element Bourdon tube, Copper alloy ≤ 60 bar: "C" type tube > 60 bar: Helical tube Movement Brass Dial Plastic, white Scaling black Pointer Plastic, black Housing ABS, black, highly impact-resistant and corrosion-resistant Window Plastic, clipped in NG 80: With adjustable red reference pointer NG 100: With adjustable red reference pointer Options Damping screw Reference pointer Special scales Other process connections
