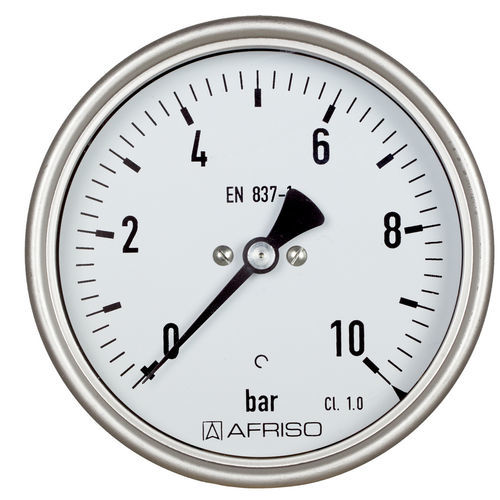

For machine and plant engineering
Robust, stainless steel housing with bayonet bezel
Can be equipped with electrical contact
DNV-GL- and GOSSTANDART-certified
Application
For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For high accuracy and rough application conditions.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!
Ranges (EN 837-1/5)
See ordering table
Application area
Static load
≤ 600 bar:
Full scale value
> 600 bar:
¾ x full scale value
Dynamic load
≤ 600 bar:
0.9 x full scale value
> 600 bar:
⅔ x full scale value
Short-term
≤ 600 bar:
1.3 x full scale value
> 600 bar:
Full scale value
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
at rising temperature approx. ± 0.4 %/10 K
falling temperature approx. ± 0.4 %/10 K
of full scale value
Standard design
Measuring element
Bourdon tube
≤ 60 bar:
"C" type tube, Copper alloy
> 60 bar:
Helical tube, stainless steel 316 Ti/316 L
Window
Instrument glass
Options
Nominal size 250 (bottom connection)
Back flange
Panel mounting bezel
3-hole fixing, panel mounting bezel
Laminated safety glass window
Damping screw
Reference pointer
Electrical contacts
Special scales
Other process connections
