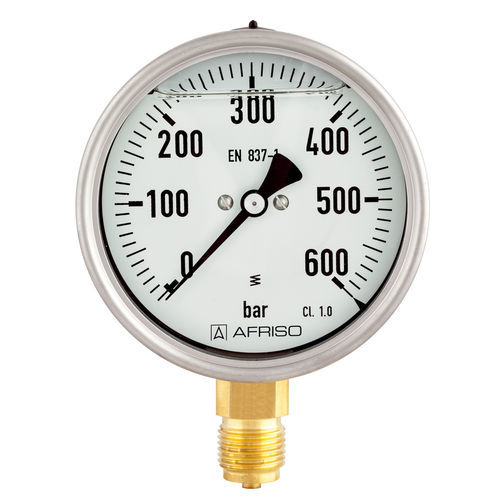

Dial pressure gauge Type D8

brassaluminumstainless steel

Compact design Can be used in case of heavy vibrations and high, dynamic pressure loads Longer service life due to less wear and corrosion protection of the measuring system No steaming up of the inside of the window in case of outdoor applications Application For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For measurements in areas with high vibration levels and high, dynamic pressure loads. Technical data Application area Static load ≤ 600 bar: Full scale value > 600 bar: ¾ x full scale value Dynamic load ≤ 600 bar: 0.9 x full scale value > 600 bar: ⅔ x full scale value Short-term ≤ 600 bar: 1.3 x full scale value > 600 bar: Full scale value Standard design Connection Brass, bottom or bottom back Measuring element Bourdon tube ≤ 60 bar: "C" type tube, Copper alloy > 60 bar: Helical tube, stainless steel 316 Ti/316 L Movement Brass Dial Aluminium, white Scaling black Pointer Aluminium, black Housing Stainless steel 304, with blow-out Bayonet type bezel Stainless steel 304 Window Instrument glass Filling liquid Glycerine (99.5 %) Options Back flange 3-hole fixing, panel mounting bezel 3-hole fixing, panel mounting bezel (NG 63) Special scales Other process connections
