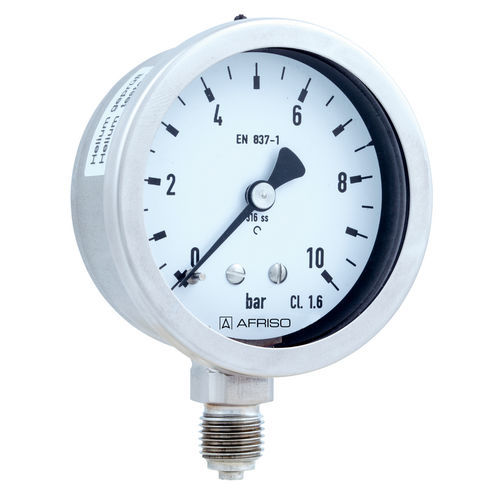

Dial pressure gauge Type D9

G 1/4plasticaluminum

For chemical and process engineering applications Measuring system fully welded to housing Extremely robust design Tightness-tested with helium GOSSTANDART-certified Ex version (optional) Application For corrosive gaseous and liquid media which are not highly viscous and do not crystallise; suitable for corrosive environments. ! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2"! Ranges (EN 837-1/5) See ordering table Application area Static load: ¾ x full scale value Dynamic load: ⅔ x full scale value Short-term: Full scale value Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C: at rising temperature approx. ± 0.4 %/10 K falling temperature approx. ± 0.4 %/10 K Options Brass movement Back flange (NG 63) Clamp fixing Ex version Crimped bezel, polished Special scales Other process connections
