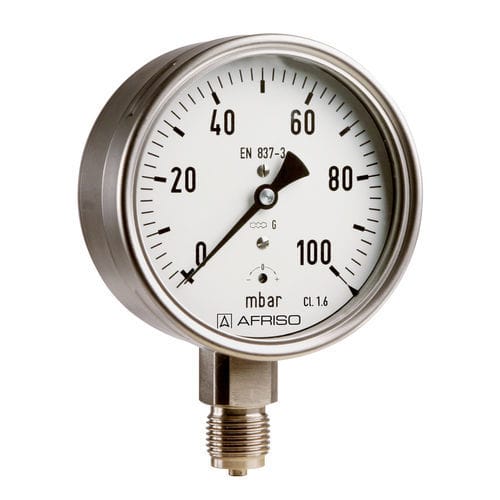

Dial pressure gauge KP63Ch D402

threadedplasticaluminum

With zero correction Robust stainless steel housing (with bayonet bezel) Wetted parts and movement made of stainless steel GOSSTANDART-certified Ex version (optional) Application For corrosive gaseous and dry media, also for use in corrosive environments. See ordering table Application area Static load: Full scale value Dynamic load: 0.9 x full scale value Overload safety: 1.3 x full scale value Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C: at rising temperature approx. ± 0.6 %/10 K falling temperature approx. ± 0.6 %/10 K of full scale value Degree of protection IP 32 (EN 60529) Zero correction From the front Seal FKM (Viton) Dial Aluminium, white Scaling black Options Back flange Panel mounting bezel 3-hole fixing, panel mounting bezel Ex version Damping screw Special scales Other process connections
