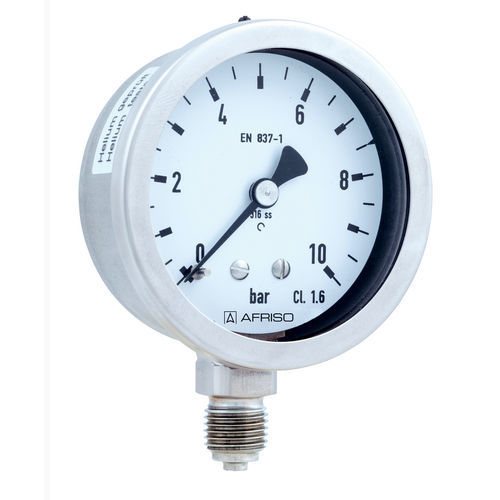

For chemical and process engineering applications
Measuring system fully welded to housing
Extremely robust design
For temperatures of the medium of up to 200 °C
Tightness-tested with helium
GOSSTANDART-certified
Ex version (optional)
Application
For corrosive gaseous and liquid media which are not highly viscous and do not crystallise; suitable for corrosive environments.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2"!
Technical data
Ranges (EN 837-1/5)
See ordering table
Application area
Static load:
¾ x full scale value
Dynamic load:
⅔ x full scale value
Short-term:
Full scale value
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
at rising temperature approx. ± 0.4 %/10 K
falling temperature approx. ± 0.4 %/10 K
of full scale value
Standard design
Connection
Stainless steel 316 L, bottom, centre back or bottom back
Options
Brass movement
Back flange (NG 63)
Clamp fixing
Ex version
Crimped bezel, polished
Special scales
Other process connections
