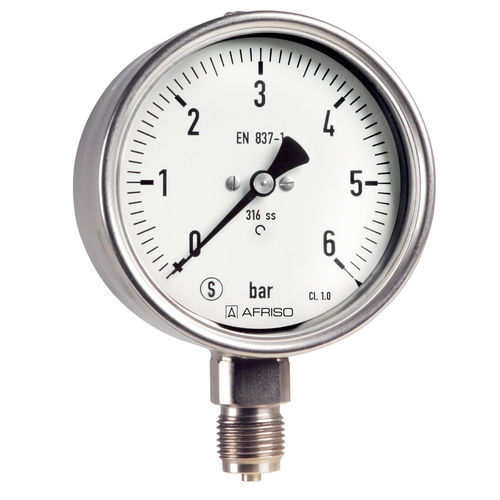

Dial pressure gauge RF63Si D402G 1/4stainless steelprocess
Add to favorites
Compare this product
Characteristics
- Display
- dial
- Process connection
- G 1/4
- Material
- stainless steel
- Applications
- process
- Pressure
Min.: -1 bar
(-14.5 psi)Max.: 1,000 bar
(14,503.77 psi)- Precision
1.6 %
- Dial diameter
63 mm, 100 mm, 160 mm
(2.5 in, 3.9 in, 6.3 in)- Process temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)
Description
Safety housing S3 as per EN 837-1/9.7.2
Measuring system fully welded to housing
Tightness-tested with helium
DNV- and GOSSTANDART-certified
Ex version (optional)
Application
For corrosive gaseous and liquid media which are not highly viscous and do not crystallise; suitable for corrosive environments. This gauge is designed for applications as per EN 837-1/9.7.2.
Ranges (EN 837-1/5)
See ordering table
Application area
Static load
≤ 600 bar:
Full scale value
> 600 bar:
¾ x full scale value
Dynamic load
≤ 600 bar:
0.9 x full scale value
> 600 bar:
⅔ x full scale value
Short-term
≤ 600 bar:
1.3 x full scale value
> 600 bar:
Full scale value
Options
Glycerine filling (bottom version type D8)
3-hole fixing, panel mounting bezel
Ex version
Special scales
Other process connections
