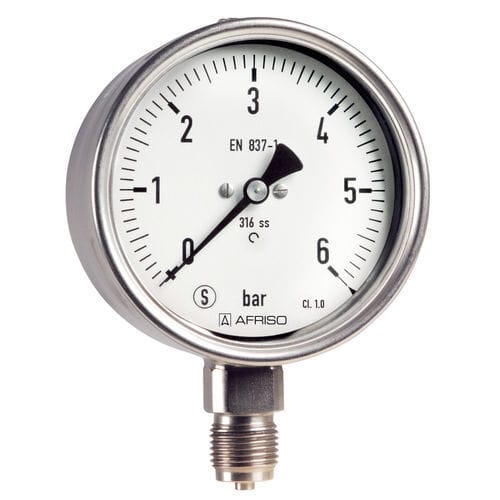

Dial pressure gauge RF63SiGly D802
G 1/4G 1/2stainless steel

dial pressure gauge
dial pressure gauge
dial pressure gauge
Add to favorites
Compare this product


Characteristics

Display
dial
Process connection
G 1/4, G 1/2
Material
stainless steel
Technology
Bourdon tube
Protection level
IP54
Applications
for gas, for liquids
Other characteristics
glycerin-filled, with safety case
Pressure

Min.: -1 bar
(-14.5 psi)

Max.: 1,000 bar
(14,503.77 psi)

Precision

1 %, 1.6 %, 2.5 %

Dial diameter

63 mm, 100 mm, 160 mm
(2.5 in, 3.9 in, 6.3 in)

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 100 °C
(212 °F)

Description

Safety housing S3 as per EN 837-1/9.7.2 Measuring system fully welded to housing Tightness-tested with helium DNV- and GOSSTANDART-certified Ex version (optional) Application For corrosive gaseous and liquid media which are not highly viscous and do not crystallise; suitable for corrosive environments. This gauge is designed for applications as per EN 837-1/9.7.2. Technical data Application area NG 100, NG 160 Static load ≤ 600 bar: Full scale value > 600 bar: ¾ x full scale value Dynamic load ≤ 600 bar: 0.9 x full scale value > 600 bar: ⅔ x full scale value Short-term ≤ 600 bar: 1.3 x full scale value > 600 bar: Full scale value Standard design Connection Stainless steel 316 L, bottom Measuring element Bourdon tube, Stainless steel 316 L Tightness-tested with helium Movement Stainless steel Dial Aluminium, white Scaling black Pointer Aluminium, black Housing Stainless steel 304, with solid baffle wall and blow-out (S3) Bayonet type bezel Stainless steel 304 Window Laminated safety glass Filling liquid Glycerine (99.5 %)
