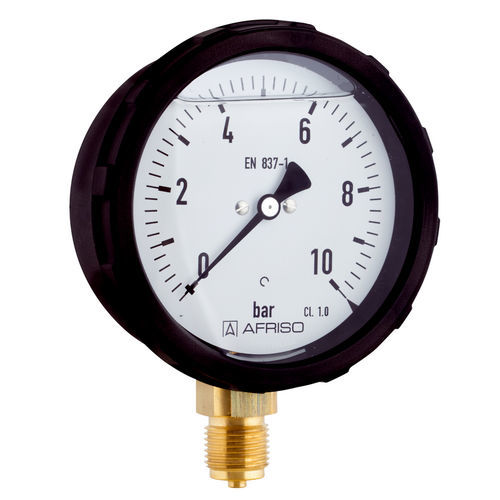

Dial pressure gauge RF100GlySR D601

G 1/2glassplastic

For machine and plant engineering Extremely robust plastic housing (PA 6.6 GB30) Laminated safety glass window Higher accuracy class optional Application For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For high measuring accuracy. ! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" Ranges (EN 837-1/5) See ordering table Application area Static load ≤ 600 bar: Full scale value > 600 bar: ¾ x full scale value Dynamic load ≤ 600 bar: 0.9 x full scale value > 600 bar: ⅔ x full scale value Short-term ≤ 600 bar: 1.3 x full scale value > 600 bar: Full scale value Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C: at rising temperature approx. ± 0.4 %/10 K falling temperature approx. ± 0.4 %/10 K of full scale value Options Higher accuracy class Damping screw Special scales Other process connections Micro-adjustable pointer
