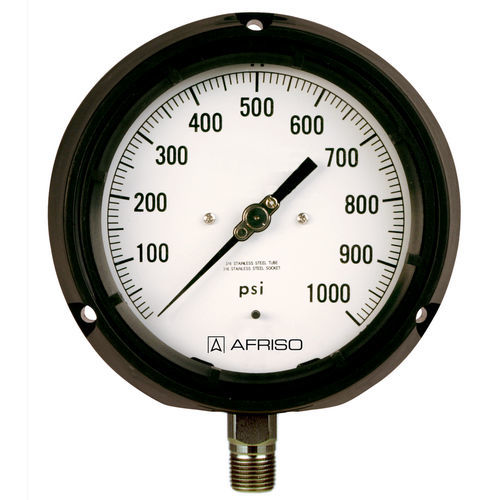

Extremely robust pressure gauge for offshore and onshore applications
Glass-fibre reinforced safety housing with solid baffle wall and blow-out
Integrated pressure compensation diaphragm
Tightness-tested with helium
GOSSTANDART-certified
Application
For corrosive gaseous and liquid media which are not highly viscous and do not crystallise. Specially suitable for the oil and chemical industries.
Accuracy class (ASME B 40.100)
Grade 2A (correspond to an accuracy of 0.5 %)
Ranges (EN 837-1/5)
See ordering table
Application area
Static load:
Full scale value
Dynamic load:
0.9 x full scale value
Short-term:
1.3 x full scale value
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
at rising temperature approx. ± 0.4 %/10 K
falling temperature approx. ± 0.4 %/10 K
of full scale value
Options
Glycerine filling (type D 6)
Silicone oil filling (type D 6)
Measuring system copper alloy (type 1x1)
Measuring system Monel (type 1x3)
Laminated safety glass window
Reference pointer
Maximum pointer
Electrical contacts
Special scales
Other process connections
