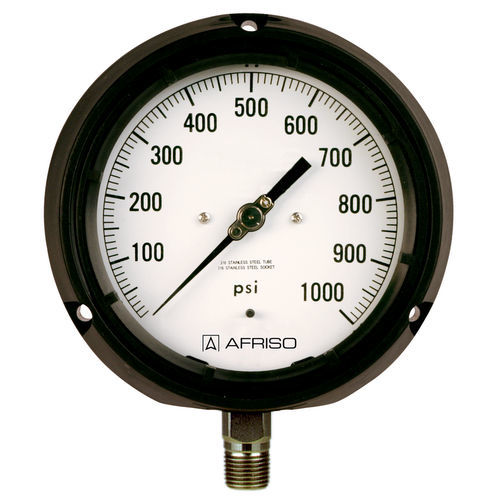

Dial pressure gauge RF130PGGly D601

glassbrassstainless steel

Extremely robust pressure gauge for offshore and onshore applications Glass-fibre reinforced safety housing with solid baffle wall and blow-out Integrated pressure compensation diaphragm Tightness-tested with helium GOSSTANDART-certified Application For corrosive gaseous and liquid media which are not highly viscous and do not crystallise. Specially suitable for the oil and chemical industries. Technical data Ranges (EN 837-1/5) See ordering table Application area Static load: Full scale value Dynamic load: 0.9 x full scale value Short-term: 1.3 x full scale value Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C: at rising temperature approx. ± 0.4 %/10 K falling temperature approx. ± 0.4 %/10 K of full scale value Standard design Connection Bottom or bottom back Brass: D601 D611 Stainless steel 316 L: D602 D612 Measuring element Tightness-tested with helium ≤ 60 bar: "C" type tube > 60 bar: Helical tube Options Glycerine filling (type D 6) Silicone oil filling (type D 6) Measuring system copper alloy (type 1x1) Measuring system Monel (type 1x3) Laminated safety glass window Reference pointer Maximum pointer Electrical contacts Special scales Other process connections
