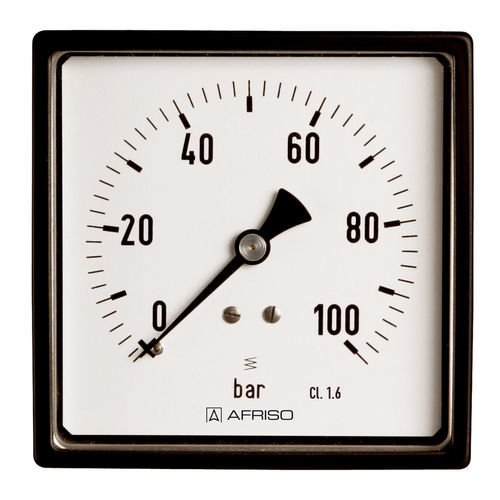

Suitable for various standard cut-out dimensions
For installation in control panels
For positive and negative pressure ranges
Application
For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. For panel mounting.
! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!
Technical data
Ranges (EN 837-1/5)
See ordering table
Application area
Static load:
¾ x full scale value
Dynamic load:
⅔ x full scale value
Short-term:
Full scale value
Standard design
Connection
Centre back
D311:
Brass
D312:
Stainless steel 316 Ti/316 L
Measuring element
Bourdon tube
D311:
Copper alloy
D312:
Stainless steel 316 Ti/316 L
≤ 60 bar:
"C" type tube
> 60 bar:
Helical tube
Movement
Brass
Dial
Aluminium, white
Scaling black
Pointer
Aluminium, black
Housing
Stainless steel 304
Bezel
Aluminium, black
Window
Plastic
Options
Zero correction (NG 96)
Wetted parts stainless steel (NG 96)
Damping screw
Reference pointer
Special scales
Other process connections
