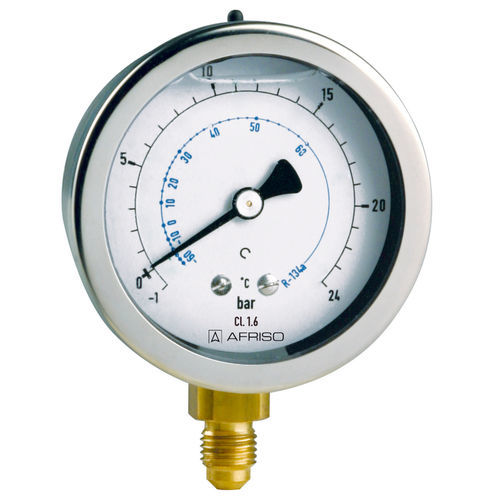

Dial pressure gauge RF63KTGly D701
stainless steelBourdon tubeIP65

dial pressure gauge
dial pressure gauge
dial pressure gauge
Add to favorites
Compare this product


Characteristics

Display
dial
Material
stainless steel
Technology
Bourdon tube
Protection level
IP65, IP54
Applications
process, for refrigeration application
Other characteristics
glycerin-filled
Pressure

Max.: 30 bar
(435.11 psi)

Min.: -1 bar
(-14.5 psi)

Precision

1 %

Dial diameter

63 mm, 80 mm, 100 mm
(2.5 in, 3.1 in, 3.9 in)

Process temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Description

Can be used in case of heavy vibrations and high, dynamic pressure loads Longer service life due to less wear and corrosion protection of the measuring system Various refrigerants measurable with multiple scales DNV- and GOSSTANDART-certified Application For simultaneous measurement of vapour pressures and temperatures in refrigeration engineering. ! For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)! Temperature scales For cooling agent: R 134a, R 290, R 404A, R 407A, R 507, R 744 Application area Static load: ¾ x full scale value Dynamic load: ⅔ x full scale value Short-term: Full scale value Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C: at rising temperature approx. ± 0.4 %/10 K falling temperature approx. ± 0.4 %/10 K of full scale value Options Temperature scales for other refrigerants Back flange Clamp fixing 3-hole fixing, panel mounting bezel (NG 63/100) Damping screw Special scales Other process connections 7/16 – 20 UNF SAE J513 (45°)
