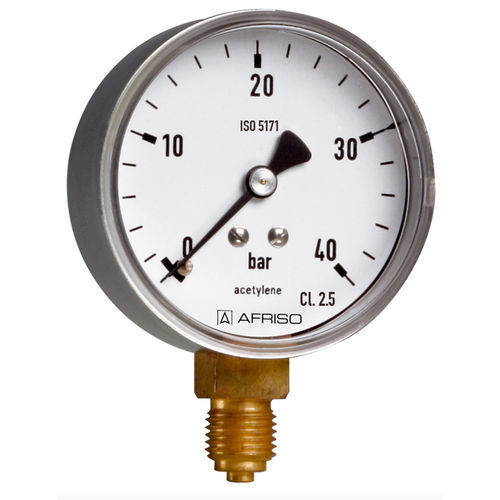

Dial pressure gauge RF63ST D301

brassstainless steelBourdon tube

Design as per ISO 5171 Rear blow-out Measuring system cleaned, oil-free and grease-free Many customised versions available Application For welding and cutting machines and systems as well as similar processes. Technical data Ranges See ordering table Application area Static load: ¾ x full scale value Dynamic load: ⅔ x full scale value Short-term: Full scale value Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C: at rising temperature approx. ± 0.4 %/10 K falling temperature approx. ± 0.4 %/10 K of full scale value Options Litre scales for argon/CO2 Special scales Other connection threads
