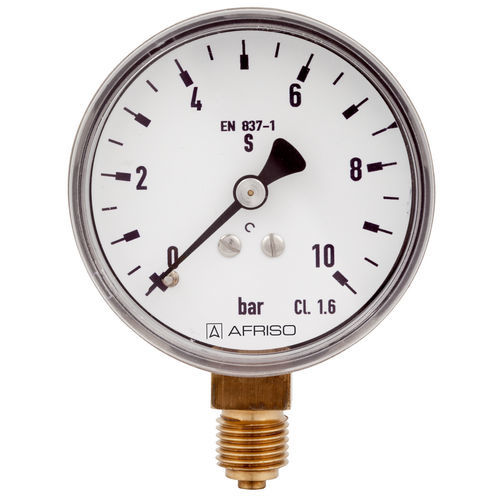

Dial pressure gauge RF40GT D301

G 1/4G 1/8plastic

Version safety pressure gauge S2 as per EN 837-1 Dual scale for measurement of different media (option) Rear blow-out Many customised versions available Application For gaseous and liquid media which are not highly viscous and do not crystallise. Specially designed for gas technology devices, fittings and installations. ! For measuring gas or vapour, these gauges must be used in accordance with the table "Selection Criteria as per EN 837-2" (see appendix)! Technical data Ranges (EN 837-1/5) See ordering table Application area Static load: ¾ x full scale value Dynamic load: ⅔ x full scale value Short-term: Full scale value Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C: at rising temperature approx. ± 0.4 %/10 K falling temperature approx. ± 0.4 %/10 K of full scale value Options Wetted parts stainless steel Wetted parts oil-free and grease-free Helium leak test Damping screw Special scales Other connection threads
