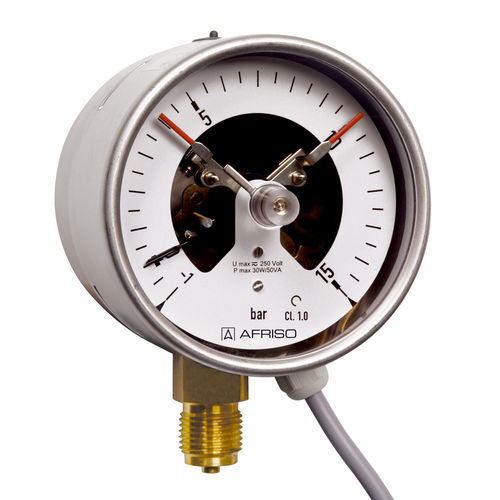

Dial pressure gauge RF100I IK1 D401
G 1/2plasticbrass

dial pressure gauge
dial pressure gauge
Add to favorites
Compare this product


Characteristics

Display
dial
Process connection
G 1/2
Material
stainless steel, brass, aluminum, plastic
Technology
Bourdon tube
Communication
with electrical contact
Protection level
IP54
Applications
process, for gas, for liquids
Pressure

Max.: 1,000 bar
(14,503.77 psi)

Min.: -1 bar
(-14.5 psi)

Precision

1 %

Dial diameter

100 mm
(3.9 in)

Process temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Description

Robust stainless steel housing Excellent readability Up to four switching contacts Available with MK, EK, IK Application For gaseous and liquid media which are not highly viscous, do not crystallise and do not attack copper alloys. Ranges (EN 837-1/5) See ordering table Application area Static load ≤ 600 bar: Full scale value > 600 bar: ¾ x full scale value Dynamic load ≤ 600 bar: 0.9 x full scale value > 600 bar: ⅔ x full scale value Short-term ≤ 600 bar: 1.3 x full scale value > 600 bar: Full scale value Contact types Inductive contact (IK) Magnetic spring contact (MK) Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C: at rising temperature approx. ± 0.4 %/10 K falling temperature approx. ± 0.4 %/10 K of full scale value Standard design Inductive contact (IK) Supply voltage DC 5 – 25 V Current input ≥ 2.1 mA Magnetic spring contact (MK) Supply voltage Max. AC/DC 250 V Making current and breaking current Max. 1 A Continuous current Max. 0.6 A Switch rating Max. 50 VA, max. 30 W Contact Ag80 Ni20 Au 10 μm Options Back flange 3-hole fixing, panel mounting bezel Damping screw Junction box Connector Special scales Other process connections
