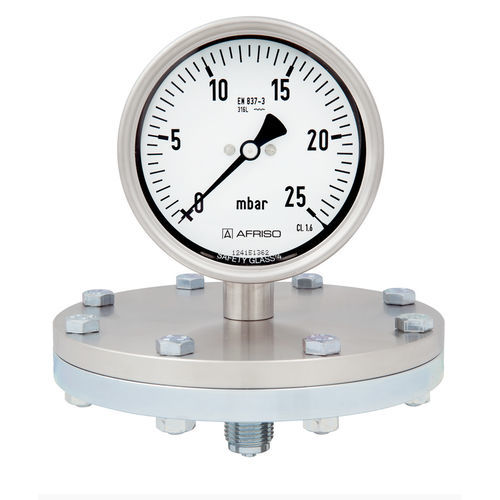

For low pressure ranges
High overpressure safety
Robust design
Optional flange connections
Application
For non-corrosive gaseous and liquid media. With open connection flange also suitable for viscous and polluted media. For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)!
Ranges (EN 837-3/5)
See ordering table
Application area
Static load:
Full scale value
Dynamic load:
0.9 x full scale value
Temperature performance
Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C:
at rising temperature approx. ± 0.8 %/10 K
falling temperature approx. ± 0.8 %/10 K
of full scale value
Options
Safety housing
Overpressure safety 10 x FSD (measuring flange ⌀ 100 to max. 40 bar, measuring flange ⌀ 160 to max. 2.5 bar)
Glycerine filling (≥ 40 mbar, ≤ 250 mbar accuracy class 2.5)
Electrical contacts
Wetted parts with special coating
Open connection flanges as per EN/ASME
