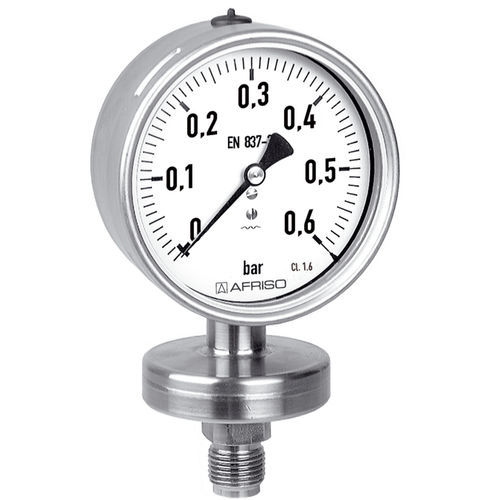

Dial pressure gauge PF100CP D402

flangealuminumstainless steel

Robust and compact design Various process connections possible Flush mounted versions without transmission liquid Wetted area without seals due to welding GOSSTANDART-certified Ex version (optional) Application For corrosive gaseous and liquid media, also for use in corrosive environments. With open connection flange also suitable for viscous and polluted media; with hygienic connections specially suitable for pharmaceutical processes. For measuring gas or vapour, observe the table "Selection Criteria as per EN 837-2" (see appendix)! Ranges (EN 837-3/5) See ordering table Application area Static load: Full scale value Dynamic load: 0.9 x full scale value Temperature performance Indication error when the temperature of the measuring system deviates from the normal temperature of 20 °C: at rising temperature approx. ± 0.8 %/10 K falling temperature approx. ± 0.8 %/10 K of full scale value Options Glycerine filling (≥ 1 bar) Wetted parts with special coating Clamp connection Varivent or BioControl connection Ex version Flush mounted connection flanges as per EN Open connection flanges as per EN/ANSI Electrical contacts (≥ 0/0.6 bar) Other connection threads
