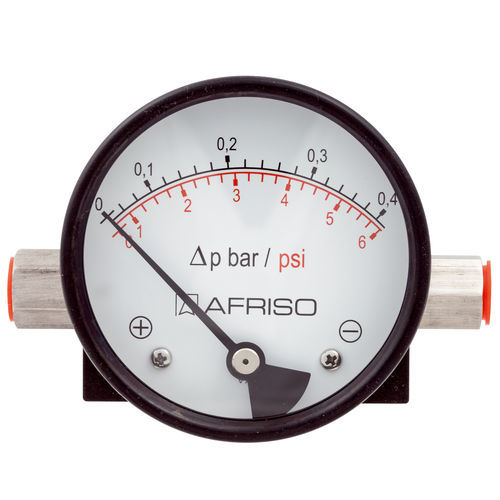

Differential pressure gauge MAG80Dif D312
dialstainless steelcompact

differential pressure gauge
differential pressure gauge
differential pressure gauge
differential pressure gauge
differential pressure gauge
differential pressure gauge
differential pressure gauge
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Display
dial
Material
stainless steel
Other characteristics
compact
Pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Precision

3 %

Dial diameter

80 mm, 100 mm
(3.1 in, 3.9 in)

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

Compact and robust stainless steel measuring system Leak-proof due to mechanical separation of pressure chamber and display Various connection types Easy retrofitting of electrical contacts without intervention in the measuring system Application For differential pressure measurements at very high static pressures. For gaseous and liquid, non-adhesive media that are not highly viscous. Particularly suitable for monitoring filters, pumps, pipe systems and cooling circuits. Ranges (EN 837-3/5) See ordering table Overpressure safety Up to the maximum static pressure at both ends Options Mounting plate with fixing clamp 3-hole fixing, panel mounting bezel Other connection threads Other connection designs Window acrylic glass Electrical contacts (Reed contacts) Filter in "plus" connection Glycerine filling Maximum pointer Special scales
