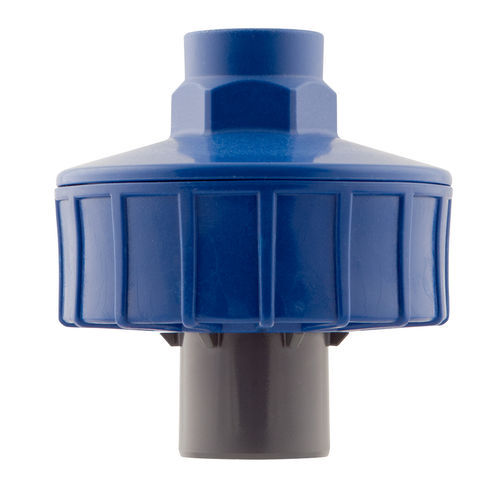

Diaphragm seal with flange connection MD 11
for pressure gaugesprocess

diaphragm seal with flange connection
diaphragm seal with flange connection
diaphragm seal with flange connection
diaphragm seal with flange connection
diaphragm seal with flange connection
diaphragm seal with flange connection
Add to favorites
Compare this product


Characteristics

Installation system
with flange connection
Other characteristics
for pressure gauges
Domain
process
Pressure

1.6 bar
(23.21 psi)

Description

Robust plastic version Suitable for many chemicals Perfect solution for waste water Various materials available Application For mounting to Bourdon tube pressure gauges or pressure switches. Specially for polluted waste water, fertilisers, corrosive media. Technical data Process connection PP, PVC or PVDF Female thread G¼ or G½ Diaphragm EPDM, TFM-coated Internal Instrument connection Female thread G¼ or G½ PP-GF30 Pressure transmission liquid Glycerine (FM 03) Pressure range See ordering table Nominal pressure PN 10 Operating temperature range PP: -10/+80 °C PVC: 0/60 °C PVDF: -20/+100 °C
