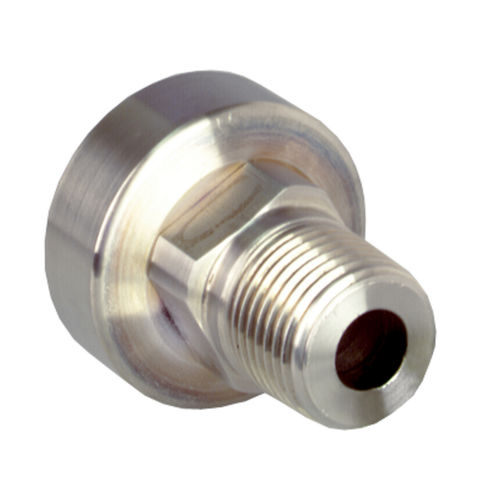

Diaphragm seal with threaded connection MD 22

for pressure gaugesprocesschemical

Robust, compact stainless steel design Ideal for heavy fuel oil, suspensions and corrosive media Suitable for medium pressure ranges Application For mounting to Bourdon tube pressure gauges, pressure transducers or pressure switches. For corrosive, hot and polluted media at medium pressures. Specially suitable for mechanical engineering and chemical industry applications. Technical data Process connection Stainless steel 316 L Fixed male thread G¼B, G½B or ½-14 NPT Diaphragm Stainless steel 316 Ti/316 L Internal, welded Instrument connection Welded connection Pressure transmission liquid Paraffin oil (FM 09), FDA-listed Pressure range See overview of versions Nominal pressure PN 40, PN 250 Options Adapter for instrument connection G¼B/G½B Cooling element (> 100 °C) Capillary tube Other threads Other materials Other filling liquids
