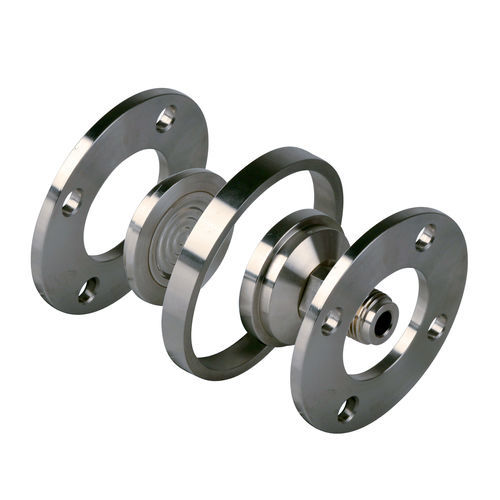

Diaphragm seal with threaded connection MD 30

for pressure gaugesprocess

Can be disassembled and cleaned Welded diaphragm Many process connections available Application For mounting to Bourdon tube pressure gauges, pressure transducers or pressure switches. For corrosive, viscous, polluted or hot media. Technical data Process connection/lower body Stainless steel 316 L G½B Diaphragm Stainless steel 316 L Seal FKM (Viton) Instrument connection Stainless steel 316 L Welded connection Retaining flanges Stainless steel 316 L Spacer ring PN 100: Stainless steel 316 L Screws and nuts Stainless steel 304 Pressure transmission liquid Paraffin oil (FM 09), FDA-listed Pressure range See overview of versions Options Process connection/lower body Special materials/coatings Other connection threads Diaphragm Special materials/coatings Seal Other materials Instrument connection/upper body Adapter for instrument connection G¼B/G½B Cooling element (> 100 °C) Capillary tube Screws/nuts/spacer ring Other materials Other Other filling liquids
