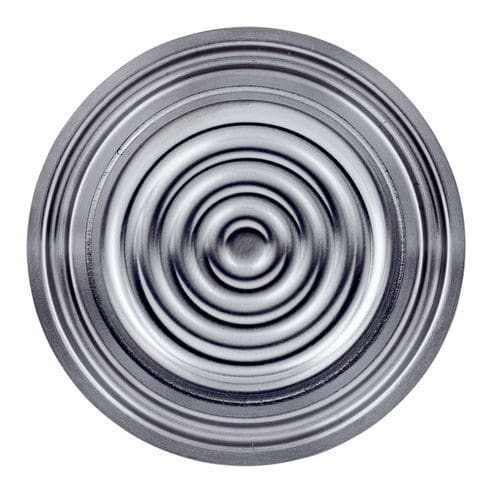

Diaphragm seal with threaded connection MD 60

for pressure gaugesfor hygienic applicationsfor the food and beverage industry

3-A-certified in conjunction with Bourdon tube pressure gauge RF 63/100 and chemical seal DMU 02 Vario All materials FDA-listed SIP/CIP enabled NovAseptic®-compatible (1" up to 2½") Application For mounting to Bourdon tube pressure gauges, pressure transducers or pressure switches. For viscous, perishable or hot media. Typical application areas: Food and beverages industry Beverages industry Pharmaceutical industry Biotechnology Description All materials used are FDA-listed. The chemical seal and the measuring instrument are welded together, resulting in an inseparable single, shock- and vibration-resistant unit that does not require additional external protection. The chemical seals are available with various nominal diameters; due to their compact design, they are suitable for a wide range of applications. Technical data Process connection Stainless steel 316 L Clamp ISO 2852 Diaphragm Stainless steel 316 L Welded to upper body, no dead space Surface roughness RA ≤ 0.8 µm Instrument connection Welded connection Pressure transmission liquid Paraffin oil (FM 09), FDA-listed Pressure range See overview of versions Nominal pressure PN 40, PN 25 Test 3-A-certified Nominal diameter 1"– 2½": For 63/100 (crimped bezel/bayonet bezel versions) For DMU 02 Vario Options Adapter for instrument connection G¼B/G½B Special materials/coatings Electropolished Cooling element (> 100 °C) Capillary tube Other filling liquids Accessories (retainer ring, seal, socket) Other process connections: MD 61: Clamp DIN 32676 MD 62: Tri-Clamp
