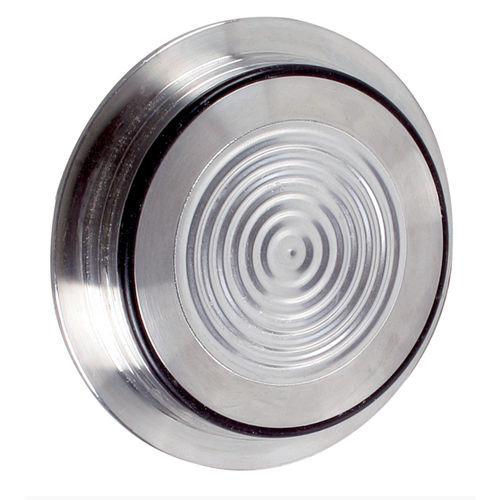

Diaphragm seal with flange connection MD 63

for pressure gaugesprocessfor the food and beverage industry

Defined installation and press-fitting with metal stop Hygienic design as per EHEDG recommendations Medium cannot get behind the seal SIP/CIP enabled Application Diaphragm seal MD 63 for sterile process separation of pressure measuring and control units in pipes or tanks. For mounting to Bourdon tube pressure gauges, pressure transducers and pressure switches. For installation in sterile processes without dead spaces. Typical application areas: Sterile applications in process engineering Pharmaceutical industry Biotechnology Beverage machines Dairies Breweries Description All materials used are FDA-listed and comply with the EHEDG hygienic design recommendations. The chemical seal and the measuring instrument are welded together, resulting in an inseparable single, shock- and vibration-resistant unit without external edges that might collect dirt. The chemical seal is available for type F and type N; due to its compact design, it is suitable for a wide range of applications. Technical data Process connection Stainless steel 316 L Type F for housings DN 25 and 1" Type N for housings DN 40-125 and 1½"- 6" Nominal installation diameter Type F: 50 mm Type N: 68 mm Diaphragm Stainless steel 316 L Material (wetted parts) Stainless steel 316 L, EPDM USP CLASS VI classified, FDA-listed Surface roughness RA ≤ 0.8 µm Seal EPDM Instrument connection Welded connection Pressure transmission liquid Paraffin oil (FM 09), FDA-listed Pressure range See overview of versions Nominal pressure PN 25 Can be mounted to Bourdon tube pressure gauges NG 50, 63, 80, 100, 160 Pressure transducers (DMU)
