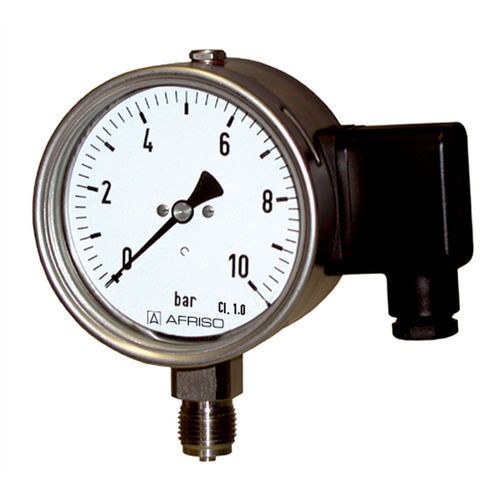

Relative pressure transducer DMU 13 Vario

thin-film4-20 mAcurrent output

Robust stainless steel housing High-precision measurements with integrated transducer Mechanical, power-independent local display Zero calibration via magnet Application For pressure measurements with a power-independent local display in combination with an electrical output signal. Description The DMU 13 Vario pressure transducers consist of a mechanical Bourdon tube measuring element and a piezo-resistive polysilicon thin-film measuring cell. The Bourdon tube measuring element is used to provide an easy-to-read analogue local display. The display is power-independent. Due to the integrated pressure transducer, high-precision measurement in parallel is possible. A standardised current output is available for signal transmission and recording of measured data. The robust stainless steel housing has a solid baffl e wall and blow out. The zero point of the electronic sensor can be corrected from the outside via a permanent magnet after voltage has been applied and within a given time window.
