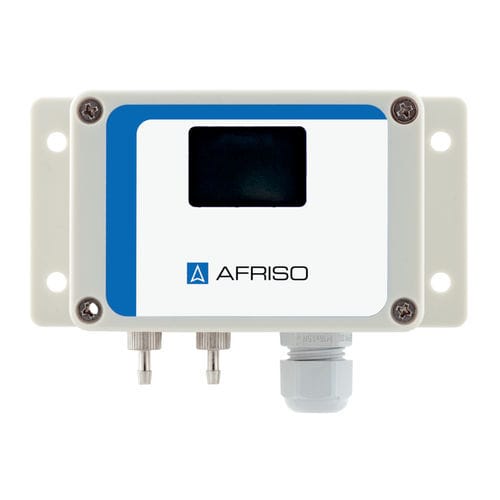

Differential pressure transducer DeltaFox DMU 20 D

silicon4-20 mA0-10 V

Multiple-range transmitter with up to 3 switchable measuring ranges Easy parameterisation via 2-line LC display Min./Max. value indication Ideal for clean room and filter monitoring Application The differential pressure transducer DMU 20 D can be used with all dry, gaseous, non-corrosive media. The device detects even smallest differential pressures and is particularly suitable for heating, air conditioning and ventilation applications. Clean rooms and filter monitoring are other application areas. Description The devices equipped with silicon sensors. When pressure is applied, the pressure difference between the positive side and the negative side is converted into a current and voltage signal which is proportional to the differential pressure. The 2-line LC display shows the measured value and the unit and optionally the status of the switching outputs. The customer can parameterise up to three measuring ranges.
