Mechanical pressure switch EDS 10

relativeabsolutePNP

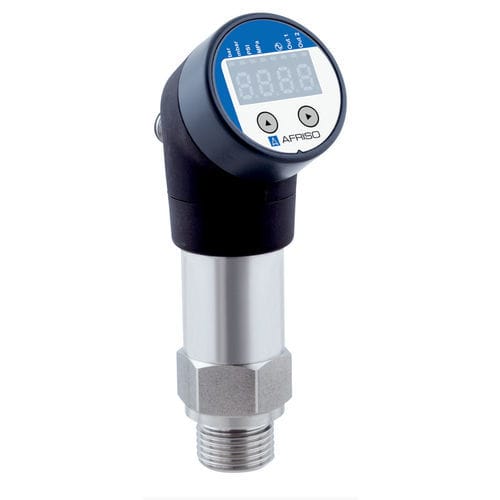

4-digit LED display Display can be rotated and tilted to any position 2 PNP switching outputs Application Main application areas comprise monitoring of gaseous or liquid media in plant and mechanical engineering. The pressure switch lends itself to pneumatic or hydraulic systems requiring high switching accuracy. The display can be rotated and tilted to practically any position so that the device can be used under adverse mounting conditions. Description The device uses a piezo-resistive stainless steel measuring cell. The 4-digit LED display of the pressure switch EDS 10 can be rotated by 330° and tilted by 300°. The switching points (switching hysteresis) are via the menu and two keys. The status of the switching outputs is indicated by an LED each. At a nominal pressure of ≥1, the pressure switch is vacuum-tight without limitations. Technical data Measuring accuracy Deviation from the characteristic curve according to IEC 60770 – limit point calibration (non-linearity, hysteresis, repeatability) > 0/0.4 bar ≤ ± 0.35 % FSO ≤ 0/0.4 bar ≤ ± 0.5 % FSO Long-term stability ≤ ± 0.3 % FSO/Jahr Display 4-digit, 7-segment, LED display, red, Range -1,999/+9,999, Visible area 22.5 x 10.5 mm, 4 LEDs for switchable pressure units (bar, mbar, psi, MPa), Status indication switching output, Switching output 1: green LED, Switching output 2: yellow LED Measuring range See ordering table Switching outputs Switching delay: 0 to 50 s Repeatability: ≤ ± 0.1 % FSO Switching cycles: > 100 x 106 Switching frequency: Max. 200 Hz
