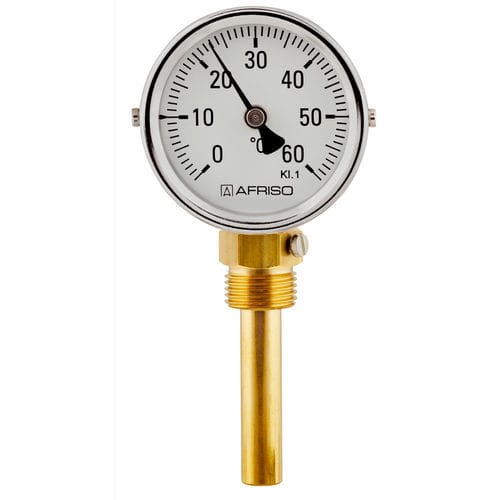

Bimetallic thermometer BiTh Idialfor aluminumindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- bimetallic
- Display
- dial
- Applications
- industrial, for aluminum
- Temperature
Min.: -20 °C
(-4 °F)Max.: 160 °C
(320 °F)- Precision
1 %
- Dial diameter
63 mm, 80 mm, 100 mm, 160 mm
(2.5 in, 3.1 in, 3.9 in, 6.3 in)
Description
Brass thermowell
Brass stem
Application
Mechanical engineering, plant engineering, pipelines, boilers, heating technology
Technical data
Application area (EN 13190)
Continuous load:
Measuring range
Short-term:
Range
Standard design
Connection
Stem:
Brass, ∅ 9 mm
Thermowell:
G½B, Brass, ∅ 12 mm, removable
Mounting position
Bottom or centre back
Dial
Aluminium, white
Scaling black
Pointer
Aluminium, black
Housing
Sheet steel, galvanised
Push on bezel
Sheet steel, nickel-plated
Window
Instrument glass
Options
Other connection types
Other ranges
Other stem lengths
Catalogs
Complete Catalogue
805 Pages
Industrial technology
454 Pages
