IP65 alarm unit WGA 01 D

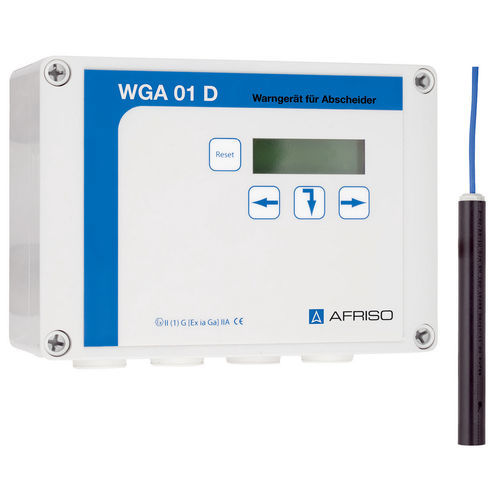

For oil and petrol separators Up to 3 probes for layer thickness alarm, overflow alarm, sand - sludge alarm With LC display Application Oil and petrol pose a great hazard to groundwater and waste water. WGA 01 D monitors the thickness of the layer of separated liquid in oil and petrol separators and generates an alarm signal when it is time to drain the separator. In addition, the maximum level in the separator can be detected. This avoids overfilling that may be caused by clogged outlets or other circumstances. The unit keeps harmful substances from reaching the sewage water system. It is also possible to signal impermissible sand or sludge accumulations. Description WGA 01 D consists of a control unit with LC display and a capacitance probe (WGA-ES4) to monitor the layer thickness of oil or petrol layers. The PTC thermistor probe WGAR6 for monitoring the maximum level (overflow alarm) and/or the ultrasonic sludge probe WGA-ES8 for monitoring impermissible sand or sludge layer can also be connected. The control unit is equipped with 2 relay outputs, visual and audible alarms as well as Test and Acknowledge buttons. The WGA-ES4 probe is mounted at least 150 mm below the constant level of the separator. As soon as the oil, petrol or grease layer reaches the critical level, the device generates an alarm signal. By installing the optional WGA-R6 probe above the constant level, you can also monitor the maximum level. The control unit monitors the probes for short circuits or line interruptions. The device automatically detects the connected probes during commissioning.
