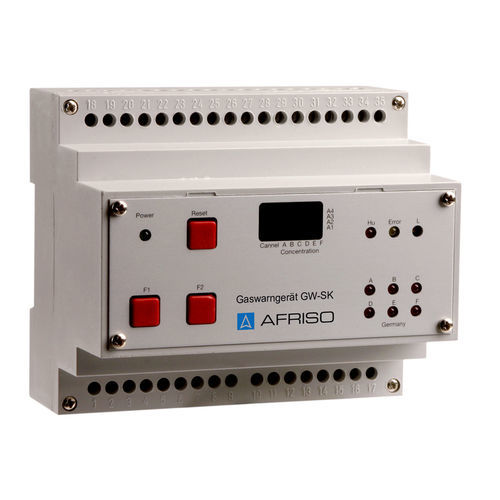

Alarm system GW-SK 6.1

For connection of up to six gas sensors (measuring points) Digital display for concentration, programming and calibration data Alarms: memory mode or volatile mode (1-4) Self-monitoring for line interruption, short circuit and power outage Data logger (data logger) Application For continuous monitoring for flammable or toxic gases as well as oxygen in ambient air. Ideal for industrial and building technology applications. Not suitable for use in hazardous areas (EX areas). Description Freely programmable gas alarm system in a compact DIN rail housing for the connection of up to six gas sensors. The control unit can monitor various types of gases. GW-SK 6.1 can be operated in single-stage or dual-stage mode. Limit values can be set as required. 6 integrated relays can be assigned as required (1 relay is used for general alarm and 1 relay for the audible alarm signal (horn)). The other relays are available for control outputs. Among others, the following combinations are possible: 1 alarm threshold, 6 sensors, 4 alarm groups 2 alarm thresholds, 6 sensors, 2 alarm groups 3 alarm thresholds, 6 sensors, 1 alarm group The gas alarm system features a display with alternating indication of measured values and three operating levels: 1. Measurement level: Displays measured values, faults, alarms 2. Parameter level: Displays measuring ranges, limit values, alarm groups 3. Service level: Displays limit values, performs function checks of the relays, parameterisation (such as alarm group and limit value settings) GW-SK 6.1 alternately displays the concentration at each measuring point. If a sensor exceeds alarm level 1 or alarm level 2,
