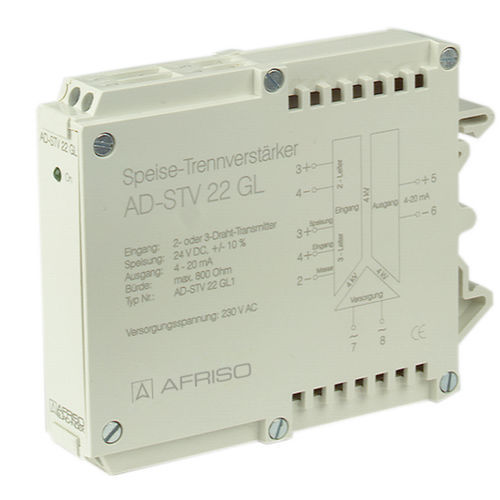

Power amplifier STV 22 GL

voltageisolationtransducer

The STV 22 GL isolating amplifier with supply is used for the galvanic isolation and amplification of DC signals (mA). Description The connected transducer is directly supplied by means of a galvanically isolated and limited supply voltage. Input and output are galvanically isolated with a high degree of isolation. The integrated high-efficiency electronic power supply unit helps to avoid overheating and allows for high output loads. Technical data Housing DIN rail housing W x H x D: 18 x 78 x 103 mm Supply voltage AC 50 – 253 V DC 20 – 253 V Sensor supply DC 24 V open circuit voltage DC 18 V at 20 mA Input 0–20 mA oder 4–20 mA Output 0–20 mA oder 4–20 mA 1:1 to input signal Output load Max. 400 Ohm
