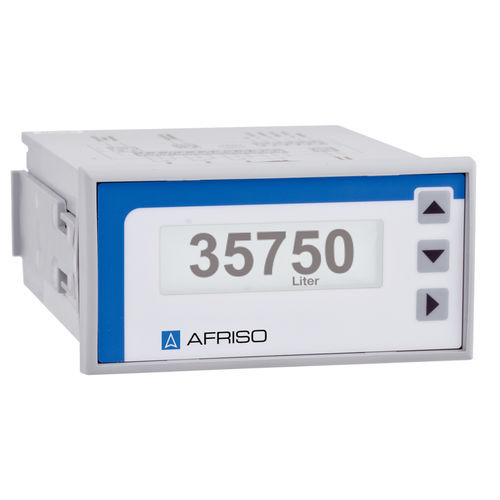

LCD display DA 10

graphic5-digitcontrol

Grey display with excellent readability Automatic off function for the backlight Text-based user interface Bearing charts for cylindrical horizontal tanks and spherical tanks are pre-programmed Linearisation for volume indication (24 points) List of selectable units, custom display units can be defined Scalable units, displayed as bar chart Extended representation of limit values: window/trend functions Universal power supply unit Integrated supply voltage for transducer (e.g. DMU 08) Application Universal application for electronic transducers for displaying measured values (DA 10), optionally with additional relay outputs (DA 12/14). Description Digital display unit in plastic housing for control panel mounting. With grey display and automatic off function for the backlight. The universal measurement input can be configured as a current input or a voltage input. Standard bearing charts for cylindrical horizontal tanks and spherical tanks are pre-programmed, additional units can be selected or set up. The units are scalable and shown as bar charts. Limit values can be displayed via a window and a trend function (rising/falling). With display message (flashing error text) if values are exceeded, parameter backup for restoring previous configurations and potentiometer for test purposes.
