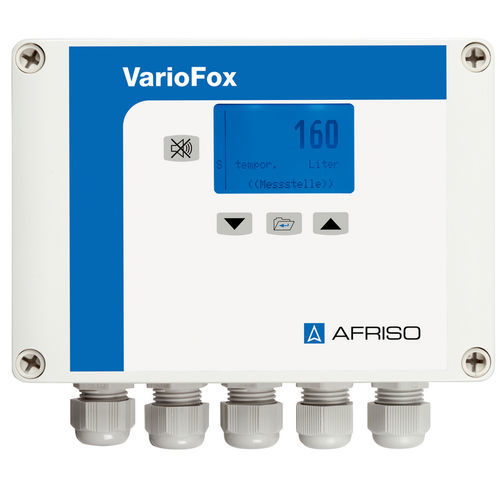

Control unit with display VarioFox® 24

temperaturecompactdigital

Can be used as compact, ready-to-connect filling or emptying controller Visual and audible alarms 4 switching outputs Data logger function via SD memory card or RS485 interface Application Universal application for indication of measured values and for control systems. Can also be used as a data logger in conjunction with an SD card. Description Compact, ready-to-connect display and control unit in a robust wall-mounting housing. With integrated sensor supply and 4 relay outputs. Together with a transducer (e.g. for pressure, temperature, level, etc.), VarioFox® forms an autonomous measuring and control system. VarioFox® is universally applicable and freely configurable. Technical data Display Multi-coloured, backlit graphical display (50 x 30 mm), Blue = Operation, Red = Alarm, Green = setup, Display (5 digits), User interface language selectable: English, German, French, Italian, Start and end values as well as comma are scalable as required Linearity ± 0.1 % v. Mw. Resolution 10 Bit, Decimal point position can be set as required Operating temperature range Ambient: 0/50 °C Storage: -20/+65 °C Supply voltage AC 50 – 253 V, 4.2 VA DC 20 – 253 V, 2.7 W Sensor supply Integrated, galvanically isolated supply voltage for transducer: DC 17 V/20 mA Analogue input All analogue standard signals, e.g. 4–20 mA, 0–20 mA, 0–10 V Audible alarm Integrated piezo-buzzer, can be acknowledged
