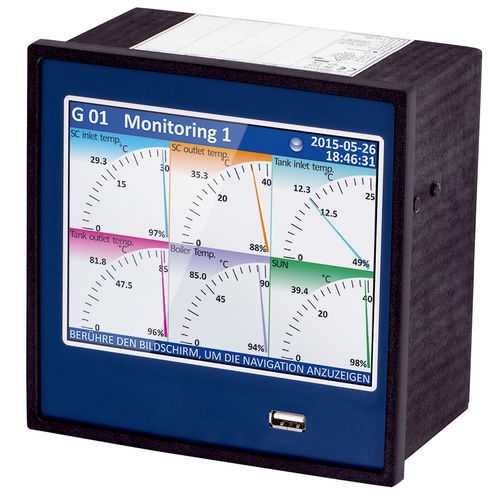

Touch screen display MPA 20 series
5.7"controlpower

touch screen display
touch screen display
Add to favorites
Compare this product


Characteristics

Screen type
touch screen
Screen size
5.7"
Applications
control, power
Interface
RS-232, RS-485, Modbus RTU
Configuration/mounting
integrated, external
Protection level
IP65

Description

Up to 90 channels for inputs/outputs 35 mathematical/logical functions 8 integrated PID controllers with autotuning 8 time-controlled/event-controlled profiles Touchscreen operation and remote operation Multi-level password system Web server with HTML5 widgets E-mail function Application Universal application for displaying and logging up to 16 independent analogue input signals, 8 binary inputs, 4 resistance thermometer inputs (RTD), 4 thermocouple inputs (TC) with freely selectable scaling and units. MPA 20 is very well suited for applications in which several physical measured variables reflect the state of an object and the state is controlled by several parameters at the same time. Description Digital display unit with integrated data logger in plastic housing for control panel mounting which allows for simultaneous measurement, visualisation and controlling of multiple channels. MPA 20 can operate autonomously or in conjunction with external measuring equipment and actuators. The multi-channel process display is designed as a modular device that consists of a base unit and optional input modules and output modules. The base unit comprises the main processor, a touch display, a switched-mode power supply (two available versions: 19–35 VDC and 85–260 VAC) as well as the communication interfaces (USB and RS 485).
