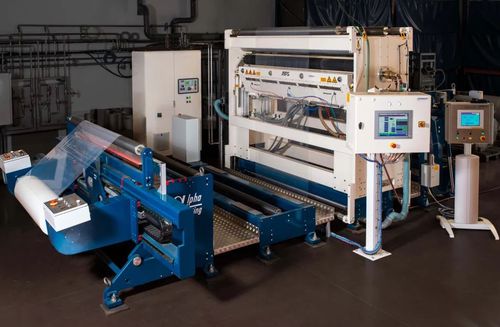

Plasma surface treatment machine ALDYNE™

Surface treatment with wet chemical primers belong in the past. With AFS ALDYNE™ the same results can be achieved, saving costs, effort and time. Environmentally unfriendly wet chemical waste, and energy intensive drying processes can be precluded. ALDYNE™is prepared for new market developments and is constantly being developed further by our R&D department. Adhesion can be achieved with ALDYNE™ on sensitive materials without damaging the surface. This surface modification in the nanometre range leaves optical characteristics of products unchanged. With precisely controlled process gas mixtures. Direct injection of the gas mixture through the electrodes ensures homogeneous gas distribution in the plasma discharge. In additionto the over pressure of the process gas, the patented labyrinth system at the web inlet and outlet provides sealing of the process chamber against ambient air. Direct adhesion by modification of the uppermost 10 nm of the product surface. High process speed achieved with patented inlet labyrinth and optimised gas supply directly in the plasma discharge. Best effect using electrodes compatible for individual applications: Metal electrodes for non-conductive materials and high process speeds. Temperature controlled ceramic electrodes for conductive and thermally sensitive materials. Compact construction. Electropneumatic opening of the electrode housing for cleaning, setting up, and servicing. Adjusters on the top side of the station for setting of the electrode air gap and gas.
