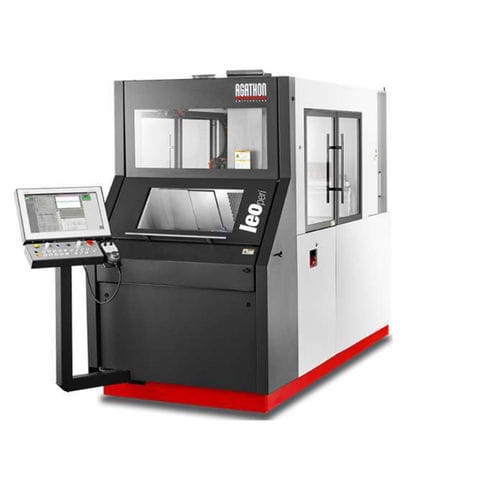

Vertical disc grinding machine Leo Peri

workpieceCNC4-axis

● Dynamic, fully integrated 3-axis linear handling ● Support for 4 up to 6 pallets ● Direct drives with optimized performance for the X, Y and C axes ● In-process dressing suitable for grinding a wide range of materials ● Compact, fully enclosed grinding area ● Grinding wheel diameter 250 mm ● Tools, operation and programming are largely compatible with the other Agathon machines Ease of use ● Excellent visibility and accessibility thanks to ergonomic design ● Consistent Agathon operating philosophy and software ● Unique, domain-specific programming language for indexable inserts ● Optional software for easy creation of programs for ISO indexable inserts (AGP-Iso) ● Simple re-teach ● Easy to clean due to a compact, fully enclosed grinding area ● Easy to maintain due to excellent accessibility ● Comprehensive training program for programming, operation and maintenance Selected options ● Chamfer grinding of simple ISO inserts with a K-Land of more than 15° ● Graphical creation of programs for ISO indexable inserts (AGP-Iso) ● 2D force measurement system for normal and tangential forces for the process definition, optimization and control ● Vision system for parts alignment and spot recognition ● Extensive possibilities for Connectivity and Data Management Highest productivity per m2 ● Very small footprint of approx. 4 m2 ● Access required from 3 sides only; alternative machine installations (flush against wall, back to back) ● Prepared for rooftop mounting of all peripherals ● Full possibilities to integrate fire extinguishing system ● All connections of the machine are centralized Low cost per workpiece ● High removal rate per m2 floor space
