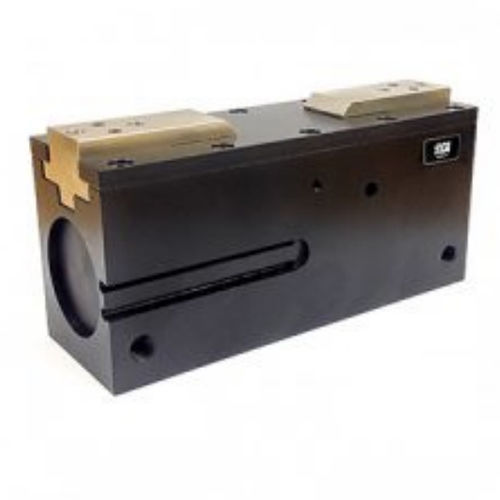

Pneumatic gripper AGLP-12-1000

parallel2-jawcompact

*Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance. *Rugged rack and pinion synchronizing. *High gripping force to weight ratio. *Compact Design with long stroke. *True parallel jaw motion for easy tooling. *Units are permanently lubricated for non-lube air operation, this allowing for compliance with OSHA regulations. *Piston seals are quad ring type for long service life. *Hall effect sensors are available to monitor open and closed positions of the jaws. *AGLP is fully field repairable for cost savings and minimum down time. *Gripper can be ordered with 3 different stroke on the same size body. Product Specifications Time: Close: 0.25 sec [0.2 sec] Open: 0.25 sec [0.2 sec] Pressure Range: Low/High 10-120 PSI [.7-7 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Loading Capacity: Static – Dynamic Max Tensile T 225lbs 75 lbs [1000 N] [333 N] Max Compressive C 225 lbs 75 lbs [1000 N] [333 N] Max Moment Mx 570 in/lb 190 in/lb [64.4 Nm] [21.4 Nm] Max Moment My 685 in/lb 228 in/lb [77.4 Nm] [25.1 Nm] Max Moment Mz 570 in/lb 190 in/lb [64.4 Nm][21.4 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 5 lb [2.26 kg] Piston Diameter: 1.625 in [41.2 mm]
