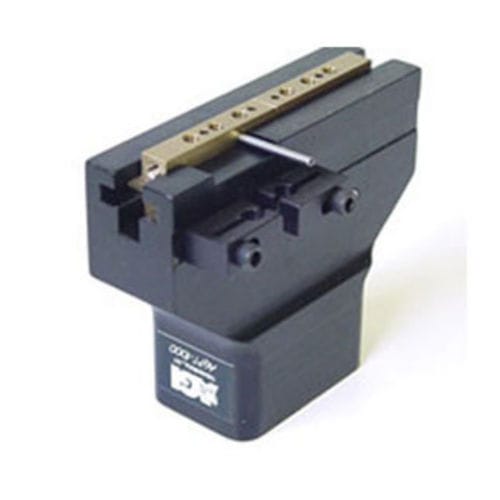

Pneumatic gripper AGPT-1000

parallel2-jawcompact

Features & Benefits *Jaws are T-Slot bearing supproted to prevent jaw breakage and offer superior load bearing performance. *High gripping force to weight ratio. *Compact design with long stroke. *True parallel jaw motion for easy tooling. *Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance. *Piston seals are quad ring type for long service life. *Proximity switches are available to monitor open and closed position of the jaws. *Series AGLP-1000 are fully field repairable for cost savings and minimum down time. *Linkage is guided in the body for precise center repeatibility. Product Specifications Time: Close: 0.20 sec [0.20 sec] Open: 0.20 sec [0.20 sec] Pressure Range: Low/High 10-120 PSI [.7-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.001 [.03 mm] Loading Capacity: Static – Dynamic Max Tensile T 60 lbs 20 lbs [266 N] [88.9 N] Max Compressive C 60 lbs 20 lbs [266 N] [88.9 N] Max Moment Mx 100 in/lb 25 in/lb [11.3 Nm] [2.8 Nm] Max Moment My 120 in/lb 30 in/lb [13.5 Nm] [3.4Nm] Max Moment Mz 100 in/lb 25 in/lb [11.3 Nm] [2.8 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 8 oz [226 g] Piston Diameter: 0.75 in [19 mm]
