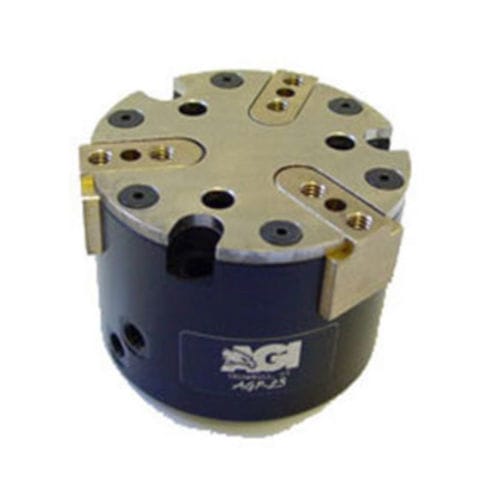

Pneumatic gripper AGP-23

parallel3-jawdouble-acting

Features & Benefits *Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance. *High gripping force to weight ratio. *True Parallel jaw motion for easy tooling. *Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance. *Piston seals are quad-ring type for long service life. *Hall effect sensors are available to monitor open and closed position of the jaws. *AGP is fully field repairable for cost savings and minimum down time. *Optional Stripper plate ensures part preload in location upon release. Product Specifications Time: Close: 0.22 sec [0.22 sec] Open: 0.22 sec [0.22 sec] Pressure Range: Low/High 30-120 PSI [2-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 300 lbs 100 lbs [1300 N] [444 N] Max Compressive C 300 lbs 100 lbs [1300 N] [444 N] Max Moment Mx 250 in/lb 75 in/lb [2.8 Nm] [8.5 Nm] Max Moment My 250 in/lb 75 in/lb [2.8 Nm] [8.5 Nm] Max Moment Mz 150 in/lb 75 in/lb [17 Nm] [8.5 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 9 oz [255 g] Piston Diameter: 1.25 in [32 mm]
