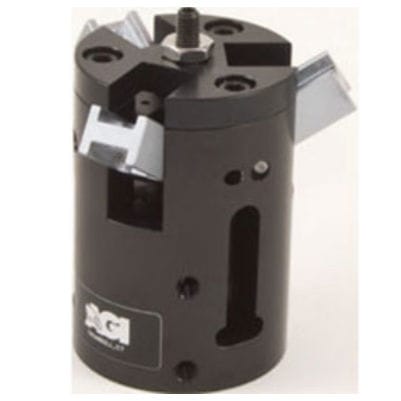

Pneumatic gripper AGA-23

180° angular3-jawcompact

Features & Benefits *Grippers provide up to 180º of angular jaw travel allowing the jaws to completely retract from the work area eliminating another required axis of travel. *High gripping force to weight ratio. *Compact design with long, adjustable stroke. *Jaw rotations can be adjusted from 0-90º to allow the gripper to be custom fit to each application. *Units are permanently lubricated for non-lube air operation, allowing for compliance with OSHA regulation. *Proximity sensors are available to monitor open and closed position of the jaws. *AGA is fully field repairable for cost savings and minimum down time. *The gripper body has two mounting surfaces with dowel pin holes to provide accurate mounting in a variety of positions. Product Specifications Time: Close: 0.2 sec [0.2 sec] Open: 0.2 sec [0.2 sec] Pressure Range: Low/High 10-120 PSI [.7-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 50 lbs – 20 lbs [222 N] – [89 N] Max Compressive C 50 lbs – 20 lbs [222 N] – [89 N] Max Moment Mx 60 in/lb – 20 in/lb [6.8 Nm] – [2.3 Nm] Max Moment My 120 in/lb – 40 in/lb [13.6 Nm] – [4.5Nm] Max Moment Mz 60 in/lb – 20 in/lb [6.8 Nm] – [2.3 Nm] Material: High Strength, Hard Coated aluminum bronze alloys, Steel Weight: 0.75 lb [0.34 kg] Piston Diameter: 0.787 in [20 mm]
