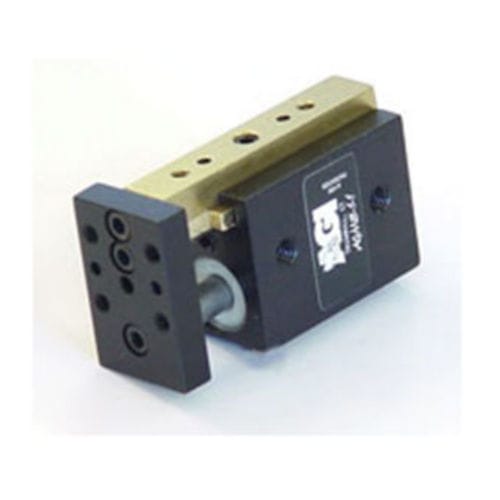

Linear actuator AGMS-1-1pneumaticaluminumcompact
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- pneumatic
- Material
- aluminum
- Other characteristics
- compact, lightweight, miniature, adjustable-stroke
- Stroke
12.7 mm
(0.5 in)- Pressure
Min.: 1.4 bar
(20.3 psi)Max.: 8 bar
(116 psi)- Force
58 N, 67 N
- Speed
Min.: 0.5 m/s
(1.64 ft/s)Max.: 3 m/s
(9.84 ft/s)- Ambient temperature
Min.: -28 °C
(-18 °F)Max.: 80 °C
(176 °F)
Description
Features & Benefits
*T-Slot bearing support for the carriage and end plate offers superior load bearing performance throughout the stroke.
*Compact lightweight unit with built-in air cylinder.
*Piston seals are U-cup type for long service life.
*Standard built-in stroke adjustment and stroke lock for precise, repetitive operation.
*Hall Effect sensors are available to monitor stroke position.
*Multiple mounting surfaces on the body and endplate with threaded and counterbored holes for easy mounting choices.
Product Specifications
Design: Built-in air cylinder T-slot slide
Thrust Force @ 80 PSI [5.5 BAR]
Side Play: ± 0.001 [.03 mm]
Maximum Payload: 3 lbs [1.3 kg]
Material: High Strength, Aluminum Alloys, Bronze
Weight: 2.5 oz [70.1 g]
Piston Diameter: .50 in [12.7 mm]
