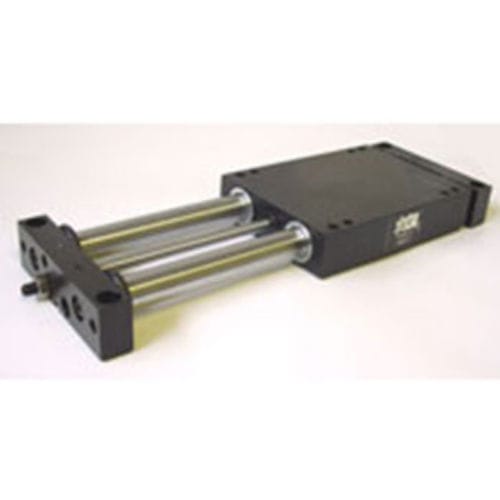

Linear actuator AGS-5

pneumaticaluminumsteel

Features & Benefits *Compact lightweight unit with built-in air cylinder. *Linear ball bearings ride on precision hardened ground steel shafts. *Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance. *Piston seals are U-cup type for long service life. *Aluminum body and end blocks contain tapped holes and dowel pin holes for precision mounting or fixturing. *Custom mounting holes and air ports can be added. Please consult factory. *Main body or end blocks can be anchored due to the 1/16" height clearance. *Standard built-in stroke adjustment for precise, repetitive operation. *Proximity switches are available to monitor end of stroke position of the body. *Optional shock absorbers can be ordered for smooth operation. *Series AGS-5 is fully field repairable for cost savings and minimum down time. Repair kits are available for repairs or maintenance. Product Specifications Design: Built-in air cylinder, linear bearings on steel hardened shafts Side Play: ± 0.001 [.03 mm] Maximum Payload: 50 lbs [22.6 kg] Material: High Strength, Aluminum Alloys, Steel Components Weight: 6.5 lbs [3 kg] Piston Diameter: 1.0 in [25 mm]
