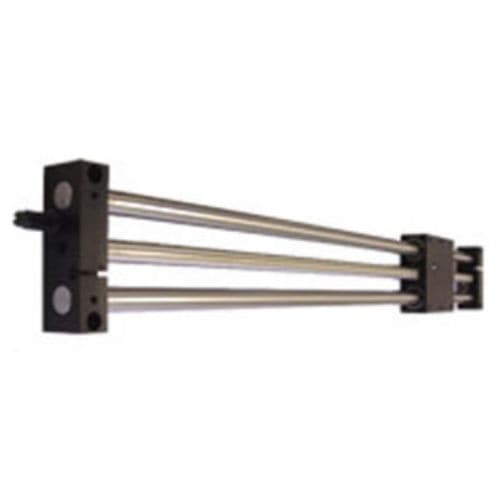

Linear actuator AGSL-6pneumaticstainless steelaluminum
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- pneumatic
- Material
- stainless steel, aluminum
- Protection class
- maintenance-free
- Other characteristics
- lightweight, magnetically-coupled
- Stroke
Max.: 132 in
Min.: 8 in
- Pressure
Max.: 101 psi
Min.: 26 psi
- Speed
Max.: 16 in/s
(24,384 mm/min)Min.: 2 in/s
(3,048 mm/min)- Ambient temperature
Max.: 140 °F
(60 °C)Min.: -14 °F
(-26 °C)
Description
Features & Benefits
*Magnetically coupled cylinder is designed to be leak free due to no mechanical connection between the piston and the body.
*Prelubricated for miles of maintenance-free travel, with easily accessible carriage lubrication port.
*304 stainless steel tubing and U-cup seals for lower dynamic friction.
*Compact lightweight unit with built-in air cylinder.
*Linear ball bearings ride on precision ground and hardened shafting.
*Aluminum body and end blocks contain tapped holes for precision mounting or fixturing.
*Main body or end blocks can be anchored due to the 1/16" height difference.
Product Specifications
Thrust Force @ 80psi: 60 lbs.
De-coupling Force: 90 lbs.
Side Play: +/- 0.005″ throughout the stroke
Loading: 35 lbs. max
Material: High strength, hard coated aluminum alloys and steel
Weight: 8.5 lbs. X .48 lbs./in of stroke
Piston Diameter: 1.0″
Cushion: Cushioned at both sides
