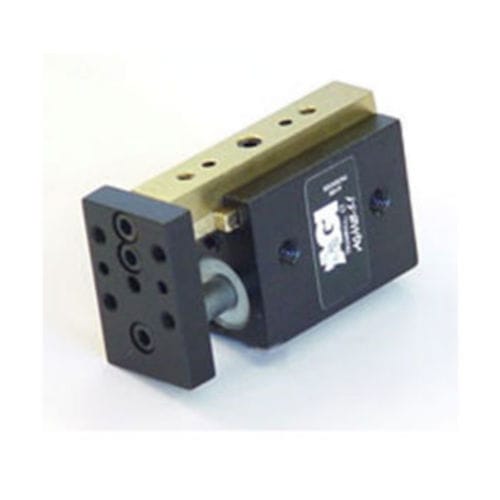

Linear actuator AGMS-1-2

pneumaticlightweightadjustable-stroke

Features & Benefits *T-Slot bearing support for the carriage and end plate offers superior load bearing performance throughout the stroke. *Compact lightweight unit with built-in air cylinder. *Piston seals are U-cup type for long service life. *Standard built-in stroke adjustment and stroke lock for precise, repetitive operation. *Hall Effect sensors are available to monitor stroke position. *Multiple mounting surfaces on the body and endplate with threaded and counterbored holes for easy mounting choices. Product Specifications Design: Built-in air cylinder T-slot slide Thrust Force @ 80 PSI [5.5 BAR] Side Play: ± 0.001 [.03 mm] Maximum Payload: 7 lbs [3.2 kg] Material: High Strength, Aluminum Alloys, Bronze Weight: 3.2 oz [90 g] Piston Diameter: .50 in [12.7 mm]
