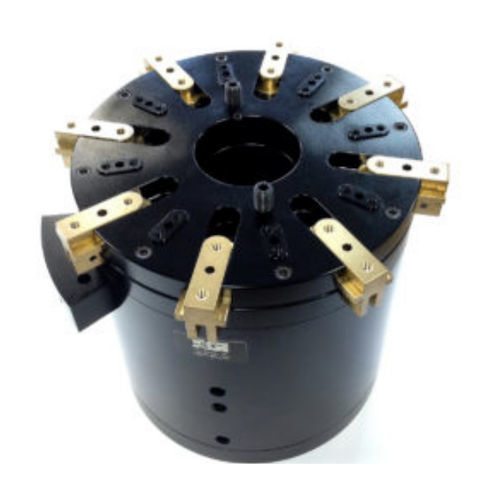

Pneumatic gripper AGP-10-OR

parallel8-jawcompact

Features & Benefits *Jaws are T-Slot bearing supported to prevent jaw breakage and offer superior load bearing performance. *Spreading jaws and Ejector jaws have independent pistons to provide exact timing of O-ring placement. *Compact design with long adjustable stroke. True parallel jaw motion for easy tooling and 2.25 inch Through hole. Product Specifications Gripping Force Per Jaw @ 80 PSI [5.5 BAR] Spreading jaws have 112-1230 lbs. force [each] @80 psi.* Ejector jaws have 750 lbs. force [combined] @80 psi. Time: Close: 0.2 sec [0.2 sec] Open: 0.2 sec [0.2 sec] Pressure Range: Low/High 30-100 PSI [2-7 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from center: ± .002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 160 lbs 45 lbs [711 N] [200 N] Max Compressive C 160 lbs 45 lbs [711 N] [200 N] Max Moment Mx 400 in/lb 100 in/lb [45 Nm] [12 Nm] Max Moment My 440 in/lb 120 in/lb [50 Nm] [13 Nm] Max Moment Mz 400 in/lb 100 in/lb [45 Nm] [12 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 26 lbs [11.7 Kg] * [ Depending where in the cycle of stroke it is measured. The farther the spread or opening of jaws, the stronger the force. This exponential force {curved} applies to all AGP-OR Grippers. Also, keep in mind these are ‘no’-friction numbers. Every application will entertain a different coefficient of kinetic friction depending on finger design, {height & length}, and should be taken into consideration during design stages of assembly equipment ].
