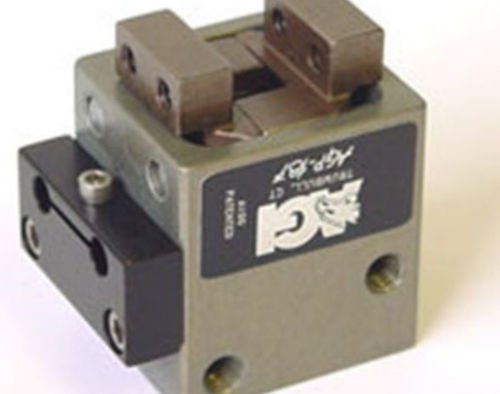

Pneumatic gripper AGP-187

parallel2-jawdouble-acting

Features & Benefits *Jaws machined from S7 tool steel to prevent jaw breakage. *Ultra high gripping force to weight ratio. *Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance. *Piston seals are quad ring type for long service life. *Additional side mounting holes and side air ports for optional mounting and porting. *Proximity switches are available to monitor open and closed position of the jaws. *Series AGP-187 is fully field repairable for cost savings and minimum down time. Product Specifications Time: Close: 0.15 sec [0.15 sec] Open: 0.15 sec [0.15 sec] Pressure Range: 20-120 PSI [1.3-8 bar] Temperature Range: -20°-180°F [-28°-80°C] Side Play: ± 0.001 [0.03 mm] Repeatability from center: ± .002 [0.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 50 lbs 7 lbs [222 N] [31 N] Max Compressive C 75 lbs 12 lbs [333 N] [53 N] Max Moment Mx 30 in/lb 5 in/lb [3.4 Nm] [0.6 Nm] Max Moment My 30 in/lb 5 in/lb [3.4 Nm] [0.6 Nm] Max Moment Mz 30 in/lb 5 in/lb [3.4 Nm] [0.6 Nm] Material: High Strength, Hard Coated aluminum bronze alloys, Steel Weight: 3 oz. [85 g] Piston Diameter: 0.75 in [19 mm]
