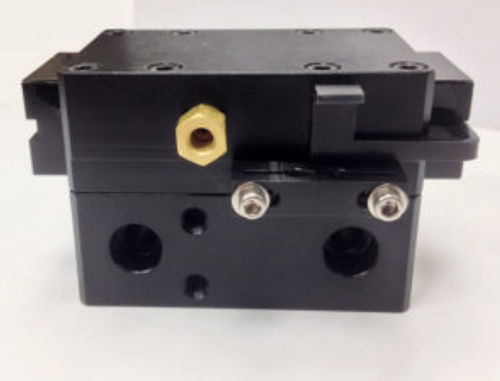

Pneumatic gripper AGP-500

parallel2-jawdouble-acting

Features & Benefits *Ultra high gripping force to weight ratio. *True parallel jaw motion for easy tooling. *Totally sealed unit with air purge: (i) Unit can be slightly pressurized to prevent debris or coolant from entering (ii) A vacuum can be applied to evacuate any contaminants from inside the unit in a clean room environment *Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance. *Piston seals are quad-ring type for long service life. *Additional side mounting holes and side air ports for optional mounting and porting. *Optional stroke adjustment for operating in tiht places. *Proximity switches are available to monitor open and closed position of the jaws. *Series AGP-500 is fully field repairable for cost savings and minimum down time. Product Specifications Time: Close: 0.2 sec [0.2 sec] Open: 0.2 sec [0.2 sec] Pressure Range: 30-120 PSI [2-8 bar] Temperature Range: -20°-180°F [-28°-80°C] Side Play: ± 0.001 [0.03 mm] Repeatability from center: ± .002 [0.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 400 lbs 50 lbs [1780 N] [222 N] Max Compressive C 750 lbs 50 lbs [3336 N] [222 N] Max Moment Mx 300 in/lb 50 in/lb [34 Nm] [5.6 Nm] Max Moment My 300 in/lb 50 in/lb [34 Nm] [5.6 Nm] Max Moment Mz 300 in/lb 50 in/lb [34 Nm] [5.6 Nm] Material: High Strength, Hard Coated aluminum bronze alloys, Steel Weight: 11 oz. [311 g] Piston Diameter: 1.25 in [31.75 mm]
