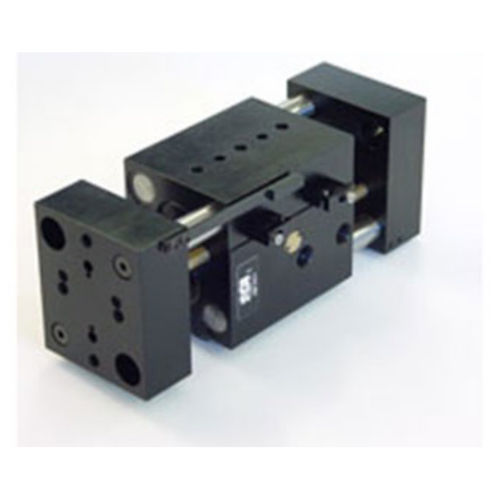

Pneumatic gripper AGW-500-1

paralleldouble-actinglong-stroke

Features & Benefits Ultra high gripping force to weight ratio due to four opposing independent pistons that direct power to the jaws. True parallel jaw motion for easy tooling. Units are permanently lubricated for non-lube air operation, allowing for OSHA compliance. Piston seals are quad-ring type for long service life. Large jaw support shafts are guided through the full width of the main body. Proximity switches are available to monitor open and closed position of the jaws. Series AGW-500-1 is fully field repairable for cost savings and minimum down time. Non-synchronous versions allow the gripper's jaws to comply to the part's centerline versus the gripper's centerline. Product Specifications Time: Close: 0.3 sec [0.3 sec] Open: 0.3 sec [0.3 sec] Pressure Range: Low/High 20-120 PSI [1.7-8 BAR] Temperature Range: Low/High -20°/180°F [-28°/80°C] Side Play: ± 0.001 [.03 mm] Repeatability from Center: ± 0.002 [.06 mm] Loading Capacity: Static – Dynamic Max Tensile T 500 lbs 50 lbs [2220 N] [222 N] Max Compressive C 500 lbs 50 lbs [2220 N] [222 N] Max Moment Mx 500 in/lb 50 in/lb [56.5 Nm] [5.6 Nm] Max Moment My 750 in/lb 75 in/lb [85 Nm] [8.5Nm] Max Moment Mz 500 in/lb 50 in/lb [56.5 Nm] [5.6 Nm] Material: High Strength,Hard Coated aluminum bronze alloys, Steel Weight: 3 lbs [1.4 kg] Piston Diameter: .875 in x 4 [22.3 mm]
